Overview

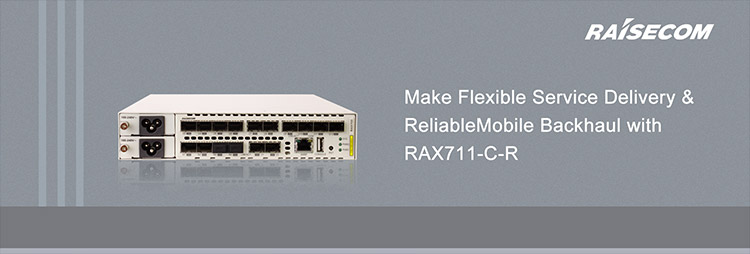

Raisecom RAX711-C-R is a compact 10G NID providing 4 x 10G SFP+ network interfaces and 12 x 1G SFP user interfaces in half 19” space. It can work as a 10G EDD or an MPLS PE device. It is designed for 1G/10G leased-line service delivery and 4G/5G mobile backhaul. The support of standard CE2.0 services (E-Line, E-LAN, E-Tree, E-Access), various service models over MPLS (VPWS, VPLS, H-VPLS, L3VPN), and advanced OAM, SLA, resiliency features, ensures service providers great flexibility and reliability in service design and deployment. Temperature hardened HW design and the support of SyncE make RAX711-C-R ready for mobile backhaul.



Highlights

  • Compact half-19” width design to save installation space greatly
  • Dual hot-swappable power supply with voltage/temperature monitoring
  • Hardened operating temperature range from -20 ˚C to +65 ˚C
  • Flexible traffic classification enables customer-defined service SLA
  • Committed protection mechanism guarantees network resiliency
  • End-to-end OAM & hardware-based SLA performance monitoring speed up service provisioning and troubleshooting
  • SyncE and IEEE1588v2 ready for mobile backhaul

Ordering info
Compact 10G NID, half-19” wide, 4 x 10G SFP+ for uplink, 12 x 1G SFP for downlink, CONSOLE and SNMP ports for management
-AC/S & -DC/S: single hot-swappable AC & DC power supply
-AC/D & -DC/D: dual hot-swappable AC & DC power supply
-AC_DC: one hot-swappable AC power supply and one hot-swappable DC power supply
