Overview

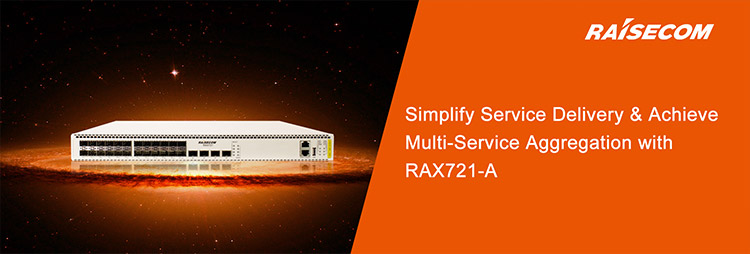

Raisecom RAX721-A is a compact L2/L3 aggregation device, providing 4 x 10G SFP+ ports and 24 x 1G SFP ports in standard 1U enclosure. It is optimized for metro access and aggregation scenarios, leased-line service delivery, and multi-service aggregation. Standard E-Line, E-LAN, E-Tree and E-Access models and the support of OAM & SLA features greatly simplify service delivery and monitoring for service providers.

With rich L2/L3 unicast and multicast features, advanced QoS and high reliability on both hardware and software, RAX721-A is a very flexible and reliable service aggregator for enterprise network, campus network, and residential LAN. It is capable to deliver multiple services (Internet, VoIP, IPTV, video surveillance…) and it is capable to fit in various networking structures. The support of IPv4/v6 dual stack and MPLS* makes it a future-proof investment for customers.

Highlights

  • Dual hot-swappable power supply with voltage/temperature monitoring
  • Smart ZTP greatly simplifies service turn-up and helps save OPEX
  • Flexible traffic classification enables customer-defined service SLA
  • Full support of L2/L3 multicast handling ensures multi-service access and aggregation
  • Committed protection mechanism guarantees network resiliency
  • End-to-end OAM & hardware-based SLA performance monitoring speed up service provisioning and troubleshooting

Ordering info
Standard 1U, 19” standalone L2/L3 pre-aggregation device, 4 x 10G SFP+ for uplink, 24 x 1G SFP for downlink, CONSOLE and SNMP ports for management,
-AC/D: dual hot-swappable AC power supply
-DC/D: dual hot-swappable DC power supply
-AC_DC: one hot-swappable AC power supply and one hot-swappable DC power supply
